Warren Trask has been distributing the Boise Cascade Engineered Wood product line since 1996. Boise Cascade’s Engineered Wood Products make home building simpler, faster and more profitable for home builders.
?

BOISE CASCADE ENGINEERED WOOD PRODUCTS

Boise Cascade manufactures and markets engineered wood products (EWP). These building products provide improved structural characteristics that use wood fiber more efficiently.

The SIMPLE FRAMING SYSTEM® uses highest-quality BCI® Joists or ALLJOIST® (AJS®) products, VERSA-LAM® LVL, VERSA-STUD® laminated veneer framing lumber and other EWP with matched depths that work together using fewer pieces and longer lengths. The result is longer spans, time saved during cutting and fitting, less waste and lower overall cost since less product is needed.

Boise Cascade Engineered Wood Products are among the most environmentally friendly “green” building products on planet Earth. They build better homes with stronger, stiffer floors using only wood purchased in compliance with Sustainable Forestry Initiative (SFI®) programs.

VERSA-LAM® BEAMS & HEADERS

VERSA-LAM laminated veneer lumber (LVL) beams and headers eliminate twisting, shrinking and splitting, and deliver flatter, quieter floors and structures. Sized to match our BCI and AJS Joists and other elements of

the SIMPLE FRAMING SYSTEM, VERSA-LAM offers quick assembly and is precision cut into more than 18 standard sizes. Because they have no camber and strength is consistent throughout, VERSA-LAM LVL products have no top or bottom side. With better properties VERSA-LAM LVL beams support heavier loads and longer spans than comparable glulam or dimension lumber products. Price competitive with laminated strand products, VERSA-LAM offers all of the advantages of authentic laminated veneer lumber (LVL). These beams are manufactured in multiple widths and depths to match BCI joists and are available nationally.

Show more
Show less

VERSA-STUD®

VERSA-STUD offers at least 2.1 times more bending strength and 20% more stiffness than no. 2 SPF dimension lumber studs. VERSA-STUD wall framing provides superior wind resistance, strength and appearance in tall wall applications

and eliminates the “hinge” created by platform framing. VERSA-STUD products should be considered for stairwells, entrance door and window walls, elevator shafts, pocket doors and walls where cabinets or wall tile are to be installed. VERSA-STUD is available in lengths up to 60 feet for specialized applications and optimized cutting, and as with VERSA-LAM, all edges are eased to help prevent painful splinters. VERSA-STUD products are manufactured from VERSA-LAM and are available nationally.
Show more
Show less

BCI® JOISTS

BCI® Joists are specially constructed I-joists with flanges made from strong VERSA-LAM® laminated veneer lumber with oriented stranded board webs and approved waterproof structural adhesives, providing outstanding strength and durability.

ALLJOIST®

The ALLJOIST series (AJS) I-joists have solid-sawn flanges made largely from black spruce, proven web stock and approved structural adhesives. These joists are designed to provide our customers with premium quality, high performance floor and roof

systems that are priced competitively with traditional construction materials. Manufactured in Eastern Canada, the wide-flange ALLJOIST series is available throughout the Eastern United States.
Show more
Show less

FIRE MEMBRANE JOIST-AJS® 24 FMJ

Met ICC-ES acceptance criteria for fire protection of residential floors. Code approved through ICC-ES ESR 1144. AJS 24 FMJ has passed the E119 fire test as required to establish equivalency to dimension lumber joists.

AJS 24 FMJ arrives at the jobsite ready to be installed. No Specific top and bottom orientation to help assure correct framing every time. Web holes may be cut the same as with non-protected joists. Non-corrosive to fasteners. Has met stringent durability standards required by the building code. 2×4 flange means longer, stronger spans; wider nailing surface.
Show more
Show less

DIMENSIONS WE CARRY

DOWNLOAD THE PDF

ProductDimensionsLengths
24F-V43-1/2” x 9-1/2”12’-40’ , 60’
24F-V43-1/2” x 11-7/8”12’-40’ , 60’
24F-V43-1/2” x 14”12’-40’ , 60’
24F-V45-1/2” x 9-1/2”12’-40’ , 60’
24F-V45-1/2” x 11-7/8”12’-40’ , 60’
24F-V45-1/2” x 14”12’-40’ , 60’
24F-V45-1/2” x 16”12’-40’ , 60’
24F-V45-1/2” x 18”12’-40’ , 60’
ProductDimensionsLengths
24F-V83-1/2” x 9-1/2”12’-36’ , 48’
24F-V83-1/2” x 11-7/8”12’-36’ , 48’
24F-V85-1/4” x 9-1/2”12’-36’ , 48’
24F-V85-1/4” x 11-7/8”12’-36’ , 48’
24F-V85-1/4” x 14”12’-34’ , 48’
24F-V83-1/2” x 3-1/2”8’-40’ , 48’
24F-V85-1/4” x 5-1/4”8’-40’ , 48’
ProductDimensionsLengths
1.8E - 2650Fb3-½" x 3-½"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb3-½" x 5-¼"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb3-½" x 7"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb5-¼" x 5-¼"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb5-¼" x 7"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb7" x 7"8', 10', 12', 16', 20', 48', 60'
ProductDimensionsLengths
1.8E - 2650Fb1-½" x 3-½"8', 10', 12', 16', 20', 48', 60'
1.8E - 2650Fb1-½" x 5-½"8', 10', 12', 14', 16', 20', 48', 60'
ProductDimensionsLengths
AJS 1409-½"10' - 48'
AJS 14011-⅞"10' - 48'
AJS 209-½"10' - 48'
AJS 2011-⅞"10' - 48'
AJS 2014"10' - 48'
AJS 2016"24' - 32', 48'
AJS 259-½"10' - 48'
AJS 2511-⅞"10' - 48'
AJS 2514"10' - 48'
AJS 2516"24' - 32', 48'
ProductDimensionsLengths
AJS 249-½"10' - 48'
AJS 2411-⅞"10' - 48'
ProductDimensionsLengths
BCI 6000s9-½"10' - 60'
BCI 6000s11-⅞"10' - 60'
BCI 60s11-⅞"10' - 60'
BCI 60s14"10' - 60'
BCI 60s16"24'-28', 48', 60'
BCI 90s11-⅞"10' - 60'
BCI 90s14"10' - 60'
BCI 90s16"24'-32', 48', 60'
DimensionsLengths
1-⅛" x 9-½"12'
1-⅛" x 11-⅞"12'
1-⅛" x 14"12'
1-⅛" x 16"12'

BOISE CASCADE EWP PRODUCT PROFILES

DOWNLOAD THE PDF

ALLJOIST Series

BCI Joists

VERSA-LAM Beams

LITERATURE

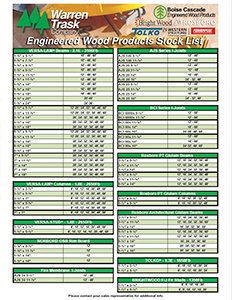

EWP Line Card

EWP Quick Reference Sheet

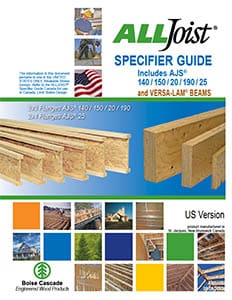

AllJoist Specifier Guide

Eastern Specifier Guide

Fire Joist Solutions for Basements

Material Safety Data Sheet

Practices to Encourage Green Building

ICC-ES VAR Environmental Report
